Hohmann Transfer Orbit Applet

The applet computes and displays the orbit of a spacecraft sent off from the Earth's orbit to travel to an inner or outer planet of the solar system. The transfer orbit is treated as a simple Keplerian ellipse around the Sun. The perturbations by the Earth, the target planet, and all the other bodies in the Solar system are neglected. The orbits of the Earth and the target are both supposed to be circular, inclination of the orbit against the plane of the Earth is neglected.

In 1925 Walter Hohmann (1880-1945) recognized that the minimum energy orbit between two circular orbits is an ellipse which is tangent at the perihelion of one orbit and at the aphelion of the other.




The launch is in the direction of the of the origin planet's orbit to take advantage of its kinetic energy.

To reach an outer planet:
 -  a velocity greater than the orbital velocity of the Earth is required: positive launch burn : ∆v>0
 -  the arrival velocity of the Hohmann orbit is smaller than the orbital velocity of the target planet's velocity,
    a soft landing requires a
positive arrival burn: ∆v>0

To reach an inner planet:
 -  a velocity smaller than the orbital velocity of the Earth is required: negative launch burn : ∆v<0
 -  the arrival velocity of the Hohmann orbit is greater than the orbital velocity of the target planet's velocity,
    a soft landing requires a negative arrival burn: ∆v<0

In case of the Sun as the target the orbital radius at arrival is supposed to be the radius of the Sun (to avoid infinities).

Select from the Target menu:
Display options
target



from Earth to Sun to Mercury to Venus to Mars to Jupiter to Saturn
orbital radius 1 AU
0.0050 AU 0.3871 AU 0.723 AU 1.524 AU 5.204 AU 9.582 AU
orbital period 365.24 d
0.1 d 88.0 d 224.7 d 687.0 d 4332.6 d 10833.9 d
orbital velocity 29.79 km/s
436.6 km/s 47.88 km/s 35.03 km/s 24.13 km/s 13.06 km/s 9.62 km/s
launch velocity

2.87 km/s 22.25 km/s 27.32 km/s 32.74 km/s 38.58 km/s 40.09 km/s
launch burn
-26.92 km/s -7.53 km/s -2.47 km/s 2.95 km/s 8.79 km/s 10.30 km/s
transfer orbit
s-m axis

0.502 AU 0.694 AU
0.862 AU 1.262 AU 3.102 AU 5.291 AU
transfer orbit
eccentricity

0.991 0.442 0.160 0.208 0.678 0.811
transfer orbit
path length

1.03 AU 2.07 AU
2.69 AU 3.92 AU 8.51 AU 13.40 AU
transfer time

65.0 d 105.5 d
146.1 d 258.9 d 997.8 d 2222.7 d
arrival velocity
616.0 km/s 57.49 km/s 37.73 km/s 21.48 km/s 7.41 km/s 4.18 km/s
arrival burn
-179.4 km/s -9.61 km/s -2.71km/s 2.65 km/s 5.64 km/s 5.44 km/s

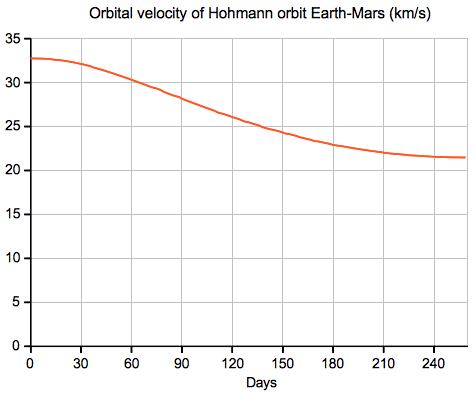

hohmann orbit to Mars velocity

hohmann orbit distance Mars

travel time Homan orbit


Earth - Moon Transfer Orbit:


Flight Time
Hohmann 119.5 h
Jules Verne, Science Fiction
97.3 h
Apollo 11, after Trans Lunar Injection Burn
72.0 h


Details for Earth-Mars Transfer and Return:

The "Target Mars" option only is including the return flight from Mars to Earth

Mars start Mars arrival
Start from Earth, t=0
Mars is 44.3° ahead
Arrival at Mars, t = 258.9 days
Earth is at 255.2°
Mars wait
earth arrive
wait for return
Waiting for 454.1 days, t = 713.1 days
Earth is at 342.8°
Arrival on Earth, t = 970.8 days
